Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Основная информация
Место происхождения: Китай
Фирменное наименование: DOWELL
Количество мин заказа: 200 шт
Время доставки: 7-15 дней
Условия оплаты: Т/Т
Поставка способности: 1000 шт в 7 дней
Подробная информация
скотч: Маркировка, временное крепление Этиловый алкоголь: Очистка
Газус: Очистка Резец волокна: Отрезание волокон
Стриппер для волокон: Снимите защитное покрытие с оптоволоконного кабеля Комбинированные инструменты: Сборка ФОСК
Выделить:

2 Inlet 2 Out Fiber Optic Joint Closure

,

144 Cores Fiber Optic Splice Closure

,

IP65 Fiber Optic Junction Box


Характер продукции

Outdoor 2 Inlet 2 Out Fiber Optic Joint Closure 144 Cores Solutions
A Fiber Optical Closure is designed for outdoor connections between optical distribution cables and indoor optical cables. Our Fiber Optical Splice Junction Box is suitable for aerial, duct, and direct buried applications, connecting to optical switches through fiber jumpers to protect against environmental degradation from heat, cold, light, oxygen, and microorganisms. The robust construction provides excellent mechanical strength, with a solid shell that withstands extreme environmental conditions while offering flame retardant and waterproof protection against vibration, impact, cable tension, and twisting.
Specification
Protection level IP65
Main material ABS, PP
Application Outdoor Aerial Dome, Buried, Pole Mount Type Outdoor
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1000N

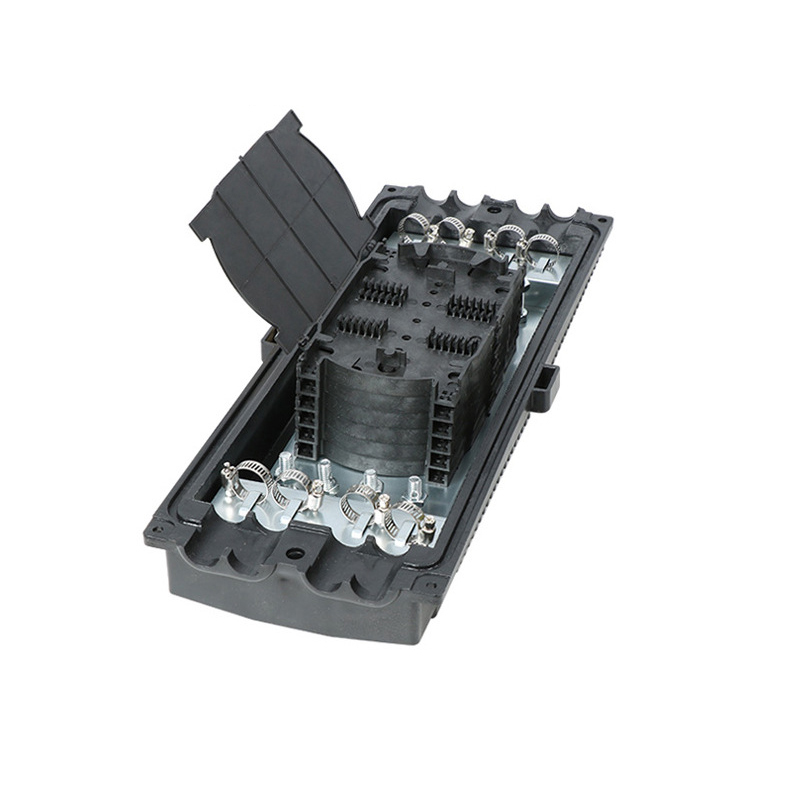

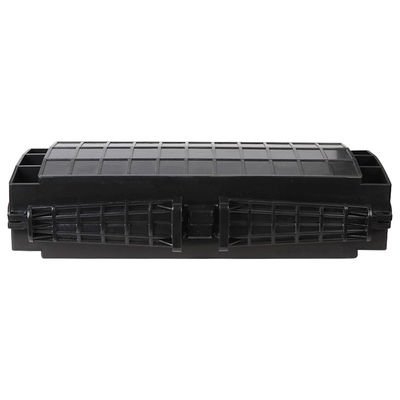

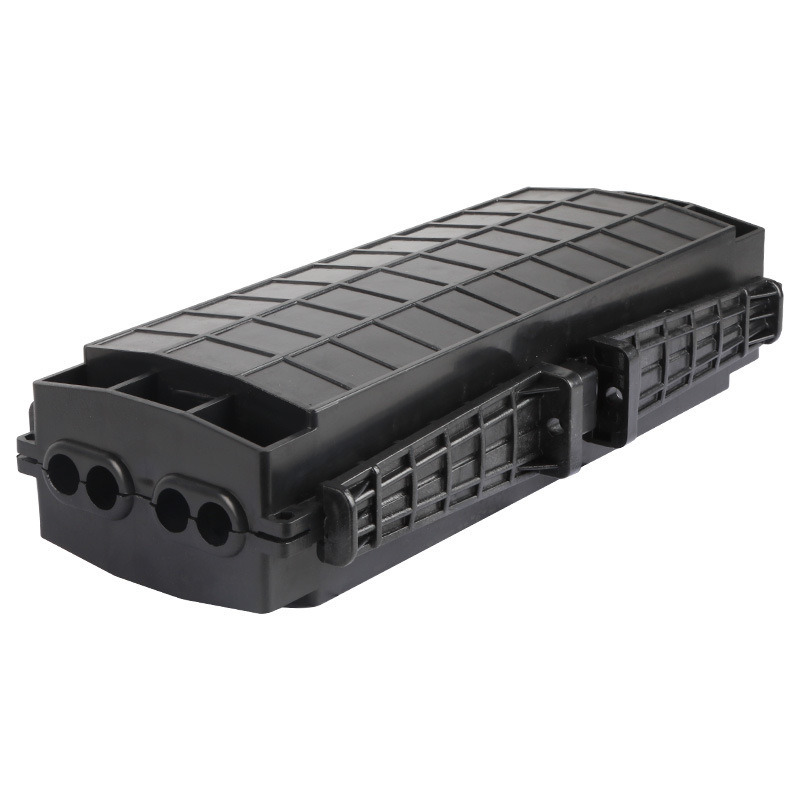

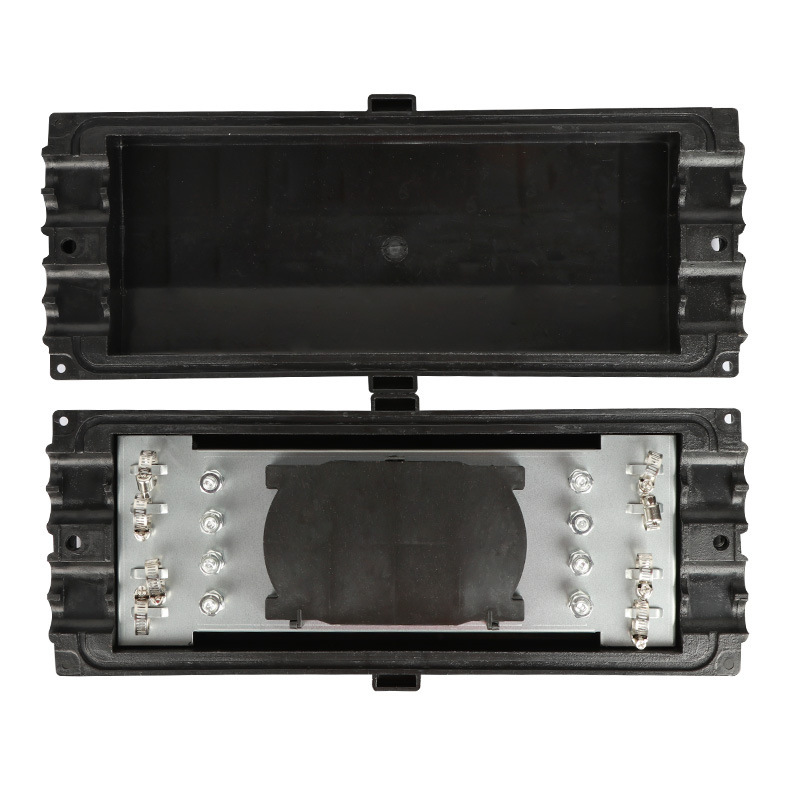

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 0
Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 1
Application
1.1 Underground Installation
Designed to resist moisture, soil pressure, and corrosion, ensuring stable fiber connections in direct-buried optical cable projects.
1.2 Aerial Installation
Lightweight and wind-resistant design for utility pole mounting, with excellent sealing to withstand rain, snow, and UV radiation.
1.3 Duct Installation
Fitted in underground ducts to accommodate fiber splicing and management while preventing dust and moisture intrusion.
1.4 Indoor/Outdoor Transition
Protects connection points between indoor and outdoor optical cables from environmental changes and mechanical damage.
1.5 Fiber Distribution Points
Serves as intermediate nodes in FTTH (Fiber to the Home) networks, enabling fiber branching and connection for end-user access.
